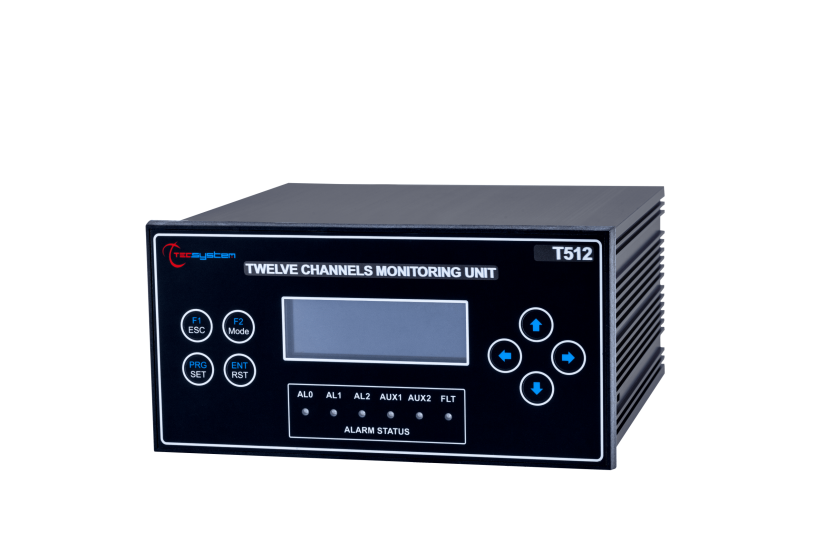

The NEW “intelligent multi-channel” UNIT T512, mainly oriented to the control of motor temperature, can also be used wherever you need to monitor a maximum number of 12 independent channels (reading range -40 to 240°C).

It is equipped with 12 Pt100 inputs, 5 output relays with contacts 5A-250V (AL0-AL1-AL2-AUX1-AUX2 – clean contacts) and there’s another FAULT relay in common with the whole system, to signal a sensor fault or any other problem inside of the unit.
It allows you to set up to three alarm thresholds for each channel and, in this complete version, it provides an RS485 Modbus RTU output for remote control.
The unique 20-character LCD display allows easy programming parameters and alarm management and also to view immediately the operating data.
On request, the unit is available with cULus certification for Canadian and American market.

All our units can also be supplied with a special coating on the electronic cards, resistant to difficult weather conditions, particularly characterized by high temperature and humidity (which are in tropical climates).

UNIVERSAL POWER SUPPLY: with input from 24 to 240 Vac-dc.

Other versions

T512 basic control unit without RS485 Modbus RTU digital output (COD.1CN0178)
