The SCS-R is a box designed and manufactured by TECSYSTEM for a quick, safe and economic connection of the sensors which detect the temperature of cast resin transformers.
The length of the cables, as well as the type of sensors, can be determined according to the specific needs of the customer.

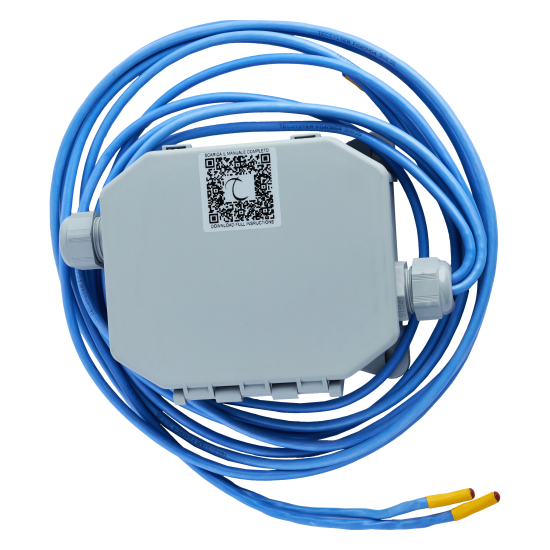

In the standard version, as shown in the photos, it comes with 3 Pt100 sensors type PTSE with 2.5 m cable each.

Box features

Dimensions: 187x128x58 mm (cable glands included)
Material: Polyamide UL 94V0

Cable gland features

Dimensions: PG16
Material: Polyamide UL 94V0

Terminal board features

Wiring section: da 0,25 a 1,5 mm²
Flame resistance: UL 94V0
Operating Temperature: from -20°C to +120°C

The application of the SCS is intended for industrial environments and limited to Tecsystem products and / or pre-defined optional accessories.

The installation of the SCS is foreseen on industrial resin transformers with IP00 protection degree and internal working environment with: temperature from -25°C to + 40°C and max 90% non-condensing humidity.

On specific request it is possible to assemble SCS with special components, which must be approved by the customer.
