PTFE Temperature sensor
Accessories and Thermometric Sensors
Product Description

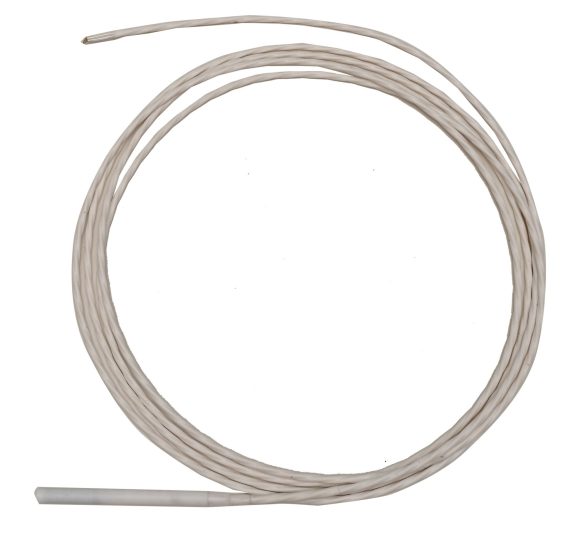

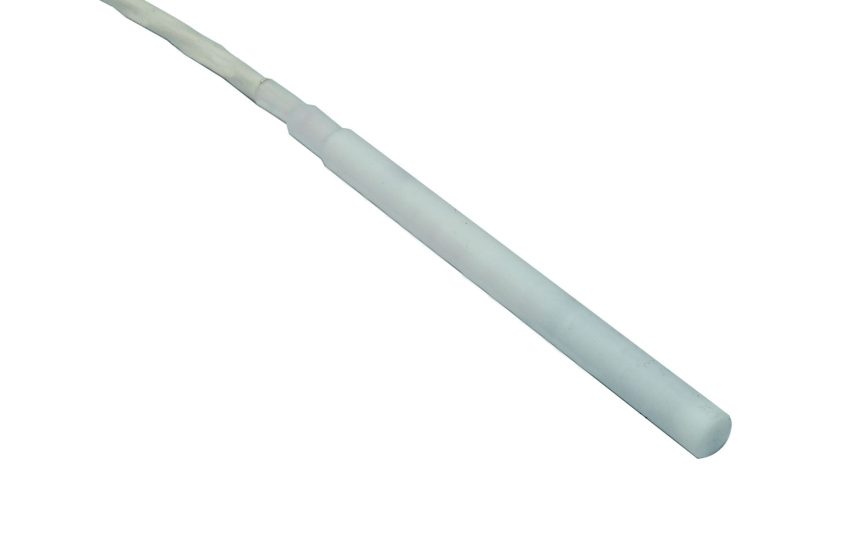

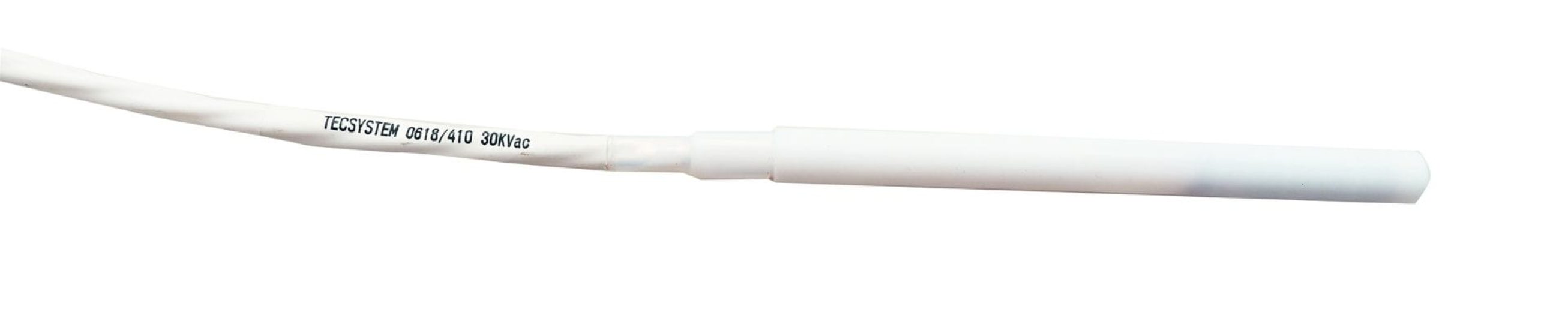

Pt100 sensor suitable to detect the temperature of the coils of MV-MV, MV-HV transformers.
• PTFE 30 KV
• RTD Pt100 Pt100 ohm at 0°C
• Calibration: IEC 60751
• Round Ø 10 x 120 mm
• Cable CuAg 3 x 0,38 mm² insulated
• Standard cable length: 2,5 mt (different lenghts on request)
• Dielectric strength: 30 kVac – 60”
• Max. operating temp.: 220°C
