Product Description

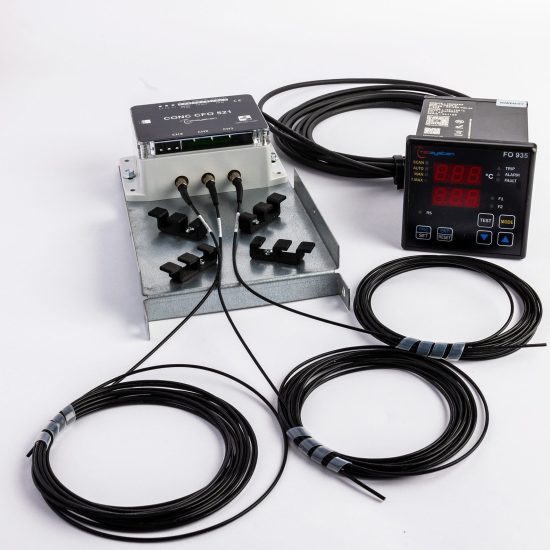

New MV-MV (with max working voltages 38kV) resin and dry transformer temperature monitoring system through OPTICAL FIBER, consisting of:

  • FO 935 ETH temperature unit
  • CFO 521 concentrator
  • 3 x Fiber optic sensors cable leght 2,5 mt
  • Fixing bracket

Available with cable sensor lenght 2,5 mt and/or 5 mt

POWER SUPPLY: with input from 85 to 260 Vac-dc.



Other versions:

FO SYSTEM

Downloads

Product Values

1FK0003

Code

3 fiber optic + 1 Pt100 Ch4

N. & Type Inputs

5 relays + Ethernet

Outputs

MV-MV Transformers

Plus

MV resin and dry transformers (max 38kV)

Application

Ethernet 10BaseT/100Base-TX Modbus TCP/IP

Connectivity

Fiber Optic temperature sensors

Sensor Type

IP65

Protection Degree (IP)

-20°C to +60°C

Operating Temperature

50/60 Hz (power supply)

Frequency

Temperature monitoring and protection with WiFi datalogger

Function

Class II (Double Insulation)

Insulation Class

3

Channels
